Handy Baby Hand baby Cbay Hand-held Car Key Copy Key Programmer for 4D/46/48 Chips

Note:
1. Latest Version: V6.1.0
2. Language:
English, Spanish and Chinese
If you want  the Russian language version,please contact us
3. This Device can't work together with CN1 or CN2 Chip, need to work with specially designed Handy Baby 4C/4D Chip and Handy Baby ID46 Chip
4. Update Free Online on Offcial Website

Attention: Handy Baby Key Programmer has G Function now, if you want to get this authorization, please contact us for more details.
Please provide your serial number with pictures after you make order, then we can open this authorization for you.




 Version 6.1.0:
1.copy 4D70-dst80  (KIA and Hyundai)
2. chip transfer
3.more types of chips generated
4.more detail information about chips
note:we are sure Ford(80bit) which made in China can be copy,  but  not sure Ford in all the countries can be copy, so it may decode fail. Locksmiths from Europe success in copying Ford(80bit)

Key Copy Programmer Recognize and Copy:
Recognize: Recognize chip 13, 40/41/42/44/45, 4C/46/48, 4D61/62/63/67/68/68﹢/71. Able to tell if 48 chip is from original or deputy factory.
Copy: Copy 46, 4D and a partial of original 48 I.E Buick Excelle, you have to use special GMT46/4D Chips, ID48 chips which can change ID.

Functions:
1.Copy transponder:46/4D/4C/13/some of 48 tansponders.
2.Write data to tansponders:46/48/4D/4D+/8A.
3.Identify transponders:11/12/13/40/42/44/46/47/4C/48/61/62/63/64/65/67/68/6A/6B/70/71/72G/83/8A.
4.Generate 4D transponders:61/62/63/65/67/68/69/6A/6B/71.
5.Generate vice 48 to fixed 48 transponder.
6.Copied fixed transponders:46/4D/4C.
7.Update online.

Operation steps:
Turn on: long press the "On" button.
Turn off: long press the "On / off" button or "On / off" and "OK" button
Steps to operate: follow the tips on the screen, put the original key into the coil, press "OK" to recognize.


Take chip 46, 4D and 48 for example.
Steps to copy 46:
1. Press "OK" to decode
2. Make antenna close to coil
3. Insert and turn the key (collection)
4. Put original key into coil to decode
5. Put new key into coil to copy

Steps to copy 4D:
Press "OK" to decode, then put new key into coil to copy.

Steps to copy 48:
Press "OK" to decode, then put new key into coil to copy.

Handy Baby Key Copy Programmer Initialize:
Please use with caution: only available for JMD46 / 4D and revisable UID48 chip. The data won’t be restored after the chip erased.
Enter program, select the chip type, press "OK" to restore to factory settings.

Handy Baby Key Copy Programmer Test Frequency:
Steps to test the key remote frequency: Enter program, make key close to the surface of left button, meanwhile press remote button, then the frequency will display.

Handy Baby Key Copy Programmer Data read and write:
1) Read and write 46 chip
1. Please select correct chip mode and password in order to read & write chip correctly. The device default chip mode and password is 46 chip blank.
2. Select chip mode: move mouse cursor to "Mode", I.E "Plaintext mode", press "OK", the fonts turn black from white to indicate the selection mode, press "Up" and "Down" to select the Plaintext mode or password mode.
3. Enter password: move cursor to the password box under the mode, press "OK" to proceed, press "Up" and "Down" to select the data (0`F), press "Left" and "Right" to transfer password.
4. After finish press "OK"to exit, then move cursor to "Read all" to read out data.
5. Read all: read out all data for 46 chip and display the status of locked or unlocked.
6. Write: write the corresponding data; make sure 46 unlocked before writing data.
7. Enter data: the way to enter data is as the same as to enter password.

2) Read and write 48 chip
1. Read: read out 48 chip UID, user 1 and user 2 data, and display 48 chip type as well as the status of locked or unlocked.
2. Write: write the corresponding area data; make sure 48 unlocked before writing data.
3. Enter data: move cursor to the data input box, press "OK" to proceed, press "Up" and "Down" to select the data (0`F), press "Left" and "Right" to transfer password. After finish press "OK" button to exit, move cursor to "Write" to write data.
4. Unlock:  if the chip is locked, then it needs to be unlocked before writing into data.
5. Steps: when the chip is read out locked, please enter PIN code which is the code of 48 chip, move cursor to "Unlock", press "OK" to unlock.

3) Read and write 4D chip
1. Read: read out 4D chip password, recognition and ID data, also display their status of unlocked or locked.
2. Enter data: move cursor to the data input box, press "OK" button to proceed, press "Up" and "Down" to select the data (0`F), press "Left" and "Right" to transfer password. After finish press "OK" to exit, move cursor to "Write" to write data.
3. Write: write the corresponding area data; make sure 4D unlocked before writing data.
4. Lock: lock the corresponding area, note: it is unable to unlock after locked.
5. Car ignition check: enter the verification code, then it will return corresponding signature.

4. Other chips
Able to recognize chip 13、40/41/42/44/45、4C/46/48、4D61/62/63/67/68/68﹢/71
Able to use T5575、em4305 and the compatible cards to copy 13 chip.

5. Generate chip
Chip 67 and 68: need the unlocked 4D chip to generate.

Specialized 48 chip: able to generate chip for only Seattle TA, VW TA, Skoda TA, Audi TA, SEAT TP, VW TP, Skoda TP, Audi TP and Jetta

Instruction on Reading and writing 46 chip with CBAY Handy Baby Key Programmer
1. Please select correct chip mode and password in order to read & write chip correctly. The device default chip mode and password is 46 chip blank.
2. Select chip mode: move mouse cursor to “Mode”, I.E “Plaintext mode”, press “OK”, the fonts turn black from white to indicate the selection mode, press “Up” and “Down” to select the Plaintext mode or password mode.
3. Enter password: move cursor to the password box under the mode, press “OK” to proceed, press “Up” and “Down” to select the data (0`F), press “Left” and “Right” to transfer password.
4. After finish press “OK”to exit, then move cursor to “Read all” to read out data.
5. Read all: read out all data for 46 chip and display the status of locked or unlocked.
6. Write: write the corresponding data; make sure 46 unlocked before writing data.
7. Enter data: the way to enter data is as the same as to enter password.


What is the difference between Hand baby and Mini CN900?
Function \ Product Handy Baby CN900 MINI
Brand/Manufacturer JMD TJECU
Copy 4D / 4C YES YES
Copy ID46 YES YES
Copy 72G YES YES
Copy ID42 YES YES
Copy ID11 YES YES
Copy ID12 YES YES
Copy ID13 YES YES
Copy ID33 YES YES
4D86 DST80 (Ford) YES NO
4D70 DST80 (Hyundai/ KIA) YES NO
Copy ID48 YES NO
After-sale service YES Yes
Tech support YES Yes
CE mark YES ?
Update online YES YES

Following is the models and chips tested ok by Handy baby/Cbay users:
Brand Modle Years Chip Remarks
BMW 730 2002 46 Copy successfully
Buick Excelle 2005 4D Copy successfully
Buick Excelle 2012 48 Generate successfully
Maxus G10   46 Copy successfully
MG MG3   46 Copy successfully
Honda  FIT   46 Copy successfully
Honda  CR-V   46 Copy successfully
Peugeot 2008   46 Copy successfully
Peugeot 3008   46 Copy successfully
Buick GL8   13 Copy successfully
Buick Excelle GT   46 Copy successfully
Buick Eecore   46 Copy successfully
Ford Focus   DST40 Copy successfully
FAW Pentium   4D Copy successfully
Mazda Mazda6   4D Copy successfully
Nissan Qashqai   46 Copy successfully
Citroen C-QUATRE   46 Copy successfully
Great Wall C50   46 Copy successfully
Suzuki SX4   46 Copy successfully
Hyundai  VERNA 2014 46 Copy successfully
Hyundai  Elantra 2014 46 Copy successfully
Chevrolet Aveo 2014 46 Copy successfully
Chevrolet Cruze 2015 46 Copy successfully
Chevrolet Captiva 2014 46 Copy successfully
Landrover VOGUE   46 Copy successfully
Mitsubishi     46 Copy successfully
Luxgen 7   46 Copy successfully
Trumpchi     46 Copy successfully
Ford     4D-60 Copy successfully
Peugeot     46 Copy successfully
Chevrolet     46 Copy successfully
Suzuki     46 Copy successfully
ROEWE 350   46 Copy successfully
Buick Enclave   46 Copy successfully
FAW PentiumB70   4D-60 Copy successfully
Geely EMGRAND   46 Copy successfully
HAWTAI 圣达菲 SantaFe   46 Copy successfully
Great Wall C30   46 Copy successfully
Honda  Crosstour   46 Copy successfully
BYD     46 Copy successfully
KIA K2   46 Copy successfully
Zhonghua 骏捷 Junjie 2011 46 Copy successfully
Volkswagen Jetta 2010 48 Copy successfully
Nissan LIVINA 2009 46 Copy successfully
FAW Vizi 2009 4C Copy successfully
Ford Focus 2010 4D Copy successfully
Ford Focus 2012 4D Copy successfully
Chery Riich 2010 46 Copy successfully
Ha/ma
S7   46 Copy successfully
FAW Pentium B50   4D Copy successfully
Peugeot 308S 2015 46 Copy successfully
Chery Fulwin   46 Copy successfully
Luxgen U6 2015 46 Copy successfully
Peugeot 408 2014 46 Copy successfully
Hyundai
  • SantaFe
2007 46 Copy successfully

How to update Handy Baby Car Key Copy to 5.2.0 Version

Software free download:
How to update handy baby car key copy 5.2.0:
1) Turn off the key programmer, connect the device with computer using USB cable
2) Open the update tool JDM.exe
3) Open and click “Open the files”
4) Locate the update tool and open it
5) Back to the software update program
6) Power on the device, the screen will display “Updating…”
7) Update is in progress
8) Update successfully

JMD Handy Baby V6.1.0 Download and Update



1. Unzip handy baby 6.1.0 update file

2. Connect handy baby device to PC
Start the device


3. Found new hardware wizard:
select Install … (Advanced), then Next



4. Select Include this location in the search, then Browse Desktop/ USB Driver, then OK



5. Wizard searches CP2102 USB to UART Bridge Controller, then Next

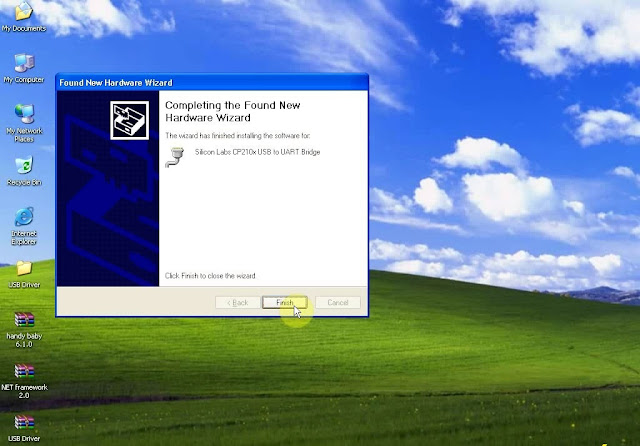

Software for Silicon Labs CP210x USB to UART Bridge installation success, Click Finish


6. Open Computer management
Select Device Manager->Ports (COM & LPT)-> Silicon Labs CP210x USB to UART Bridge (COM5)



7. Open handy baby 6.1.0 update tool on Desktop


8. Select the English language


9. Click Upgrade

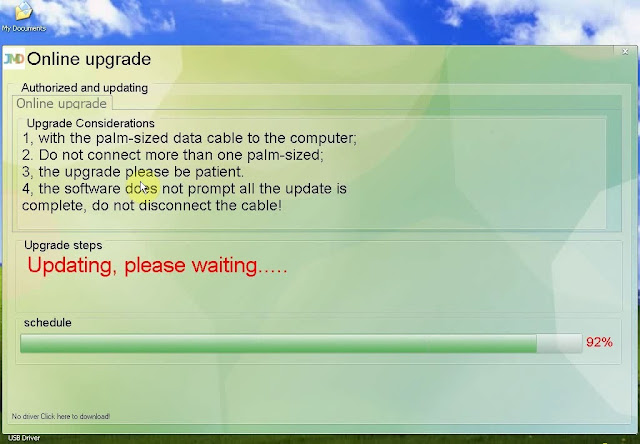

Update Notes:
1)- with the palm-sized data cable to the computer
2)- do not connect more than one palm-sized
3)- the upgrade please be patient
4)- the software does not prompt all the update is complete, do not disconnect the cable!

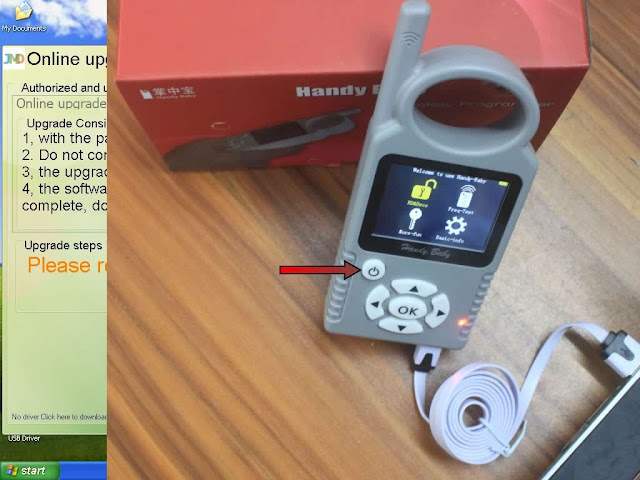

9. Restart Handy baby key copy machine, then Updating…





10. All updating successfully!

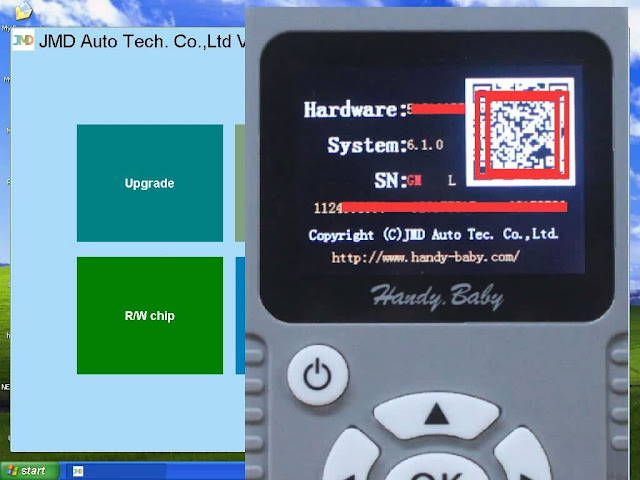

11. Now your handy-baby is used with v6.1.0 software.




For more info or question, please contact Dinna for help
Skype: ufodiag2008
Website: www.ufodiag.com
